PVC WINDOW AND DOOR SYSTEMS – FIRATPEN

Profile
Width
Number of
Chambers
Profile Heat
Insulation
Window Heat
Insulation
Sound
Insulation
60 mm 4 1,46 W/m2 ºK 1,63 W/m2 ºK 38 db
Air Permeability
Class
Water Impermeability
Class
Wind Load Resistance
Class
Glass Thickness
(mm)
4 9A C3 5, 20, 24, 32

NEW ERA ON 60 MM SERIES

Our lives are being moved to new places. Our rising sense of quality, aesthetic values and comfort perfection make us more selective. We don’t want to spare time and sources to the temporary solutions; we prefer smooth and highly economic life choices. Justifiably, we would like to have quality, aesthetics, performance values, comfort, decorative expectations and longlasting economic systems in the same product. DIAMOND meets all of your expectations and starts a new era for windows produced as 60 series.

AESTHETICS

DIAMOND 60 series creates an aesthetic integrity thanks to its oval contours in all profiles and, by means of its specially designed profiles, it becomes prominent for structures where a wider view of the scenery is demanded when compared with the other 60 series. The series enriches the aesthetic appearance through 21 different lamination color and pattern options.

SYSTEM

  • The system has a profile width of 60 mm.
  • It is designed to have 4 chambers.
  • In the system, it is possible to use glass units of 5 mm, 20 mm, 24 mm and 32 mm.
  • DIAMOND 60 series meets all requirements in wind load resistance, water and air impermeability parameters by means of its profile width, number of chambers, reinforcement steel instruments and impermeability system.
  • With oval glazing bead profiles, it brings the smooth features of the exterior surface into the interior as well.
  • The system is compatible with 13 axis espagnolettes.
  • It was designed to conveniently provide solutions for all architectural technicalities through its detailed and auxiliary profiles.

Wind Load Resistance

  • DIAMOND 60 systems successfully passed the safety test of 2.000 Pa (1655 km/h) wind load resistance.
  • While designing DIAMOND 60 system’s reinforcement steel and its locations inside the profiles, the maximum wind load values to which the buildings can be exposed were taken into consideration.
  • The system easily meets the resistance value requirements for covering the wide openings via its detailed and grillage profiles. Water and Air Impermeability.
  • Thanks to the water drainage channels and sets designed to discharge the rainwater in a faster and easier way, the high resistance to water even at high wind loads is provided.
  • Under tests carried out with 600 Pa (110 km/h) wind load and 4 liters of rainwater per minute, the system did not leak any water inside and proved its high quality.

Heat Insulation

  • By means of the chamber numbers, chamber widths and profile heights developed in consideration of the profile width, DIAMOND 60 system is able to meet all requirements regarding the thermal conductivity coefficient.
  • In accordance with the TS EN ISO 10077-2 standard, the window system with the dimensions of 1,23 m x 1,43 m has achieved the values of Uw:1,46 W/m2 ºK and Uf:1,63 W/m2 ºK.

Sound Insulation

  • DIAMOND 60 Series provides sound insulation with values up to 38 dB. Therefore, it is possible to create a sound environment at a high quality life level even at the loudest places.
  • The sound insulation level to be acquired via acoustic glasses that can be used with the system, isolates the outside noise of outdoors from indoors in the most efficient way.
Frame and Sash Profile width / mm Number of Seals / pcs Number of Chambers / pcs Sound Insulation / dB Air Permeability class Water Impermeability class
75 2 6 43 4 9A
Profile Heat Insulation / (W / M2 0K) Window Heat insulation / (W / M2 0K) Wind Load Resistance class Profile Class / TS -5358 / EN 12608 Glass Thicknesses / mm
1,02 0,94 C3 B 20,24,32,42,44

  • This series is suitable for all glass thicknesses from 4 mm to 44 mm.
  • It provides sound insulation up to 43 decibels with the acoustic glass option.
  • High water impermeability is provided by the design that facilitates water discharge.
  • Sash sagging is prevented by the applicability of hinge reinforcement steel.
  • Aesthetical integrity is provided by the oval glazing bead structure.
  • Special design triple sealing system definitely does not permeate air and water. Triple sealing system is available at Selenit Strong Series and Selenit Selective Strong Series which have Class “A” Wall Thicknesses.
  • It offers different insulation solutions with single, double and triple glazing beads.
  • It provides excellent heat insulation with 6 chambered frame and sash profiles.

QUALITY IN HARMONY WITH AESTHETICS AND PERFORMANCE – The period of SELENIT 75 Begins

System

  • All system profiles of the Selenit Series have a width of 75 millimeters.
  • Together with the detailed profiles that are integrated in main profiles, they are able bring a solution to each architectural and technical detail.
  • Window molding profiles are suitable for usage with triple-glass windows up to 44 millimeters.
  • The system is suitable for usage with 13-axis espagnolettes.
  • The resistance values of the system enable its usage on high-rise structures.
  • The lamination type that comes in 21 different colors and textures provides you with choices for both indoor and outdoor use.

EXPERIENCE, TECHNOLOGY AND DESIGN UNITE IN SELENIT 75

Wind Load Resistance

  • During design stage of Selenit 75, it was taken care for the moments of inertia belonging to the support sheets to be used within the system and the “wind load resistance” depending on these was at the highest level.
  • The series offers new solutions that can be utilized safely to provide coverage for high-rise structures and wide spaces.
  • The grillage profiles in the system can easily meet the ideal resistance values required for coverage of wide spaces in respect to architectural design.
  • The high endurance values of the Selenit system passed the 3.000 Pa (245 km/h) safety test successfully and was categorized in class C3 in regard to wind load resistance.

FOR THOSE WHO SEEK A DIFFERENT SOLUTION FOR NEW GENERATION STRUCTURES

Water and Air Impermeability

  • Special design triple sealing system definitely does not permeate air and water. Triple sealing system is available at Selenit Strong Series and Selenit Selective Strong Series which have Class “A” Wall Thicknesses.
  • Prevention of air passage from outdoors to indoors, which is necessary for energy saving, was improved with a middle gasket in addition to inner and outer gaskets.
  • The profiles were designed as to discharge rainwater to outdoors by formation of inclines and drainage channels on them.
  • The system did not leak any water inside and proved its high quality while under tests carried out with 600 Pa (110 km/h) wind load and 4 liters of rainwater per minute.

HEAT AND SOUND INSULATION IS NO LONGER A PROBLEM

Heat Insulation

  • In accordance with the standard TS EN ISO 10077-2, the Selenit System achieved the values Uf:1,02 W/m2 °K -Uw: 0,94 W/m2 °K according to the results of the test with Ug: 0,6 W/m2 °K glass of 1,23 m x1,43 m dimensions.
  • The main profiles of the Selenit Series have 6 wide cells. This enables them to minimize thermal conductivity coefficient.
  • Insulation performance has been upgraded to the best possible level for PVC window system with 3rd mid-sealing at Selenit Strong Series and Selenit Selective Strong Series.The profile designs of the Selenit Series were made as for the thermal conductivity coefficient values to be at minimum levels.

Sound Insulation

  • The sound insulation properties of the Selenit Series provide the noiseless environment that is necessary for life quality in the best way.
  • It is possible to achieve sound insulation up to 43 dB with Selenit window systems.
  • The Selenit Series ensures normal noise levels even in environments such as airports, railroads, etc. where sound levels are very high.
  • The glasses with acoustic properties which will be used with the system makes it possible to reach sound insulation levels as high as 43 dB.

The Selenit Series, designed at the highest level of aesthetics, performance and durability standards, offers a new window for modern structures. The series was developed for those who were looking for a solution that captures the zeitgeist under the changing life culture and living space concepts. The Selenit Series offers a complete system with its 75-millimeter profile width, 6-cell design and 3rd gasket option, which enable it to achieve the highest levels of performance.

The calculations were made by using a glass unit with a thermal conductivity coefficient of 0,6 W/m2K for a window with dimensions of 1,23×1,43m in accordance with the standard TS EN ISO 10077-2.

Frame and Sash Profile width / mm Number of Seals / pcs Number of Chambers / pcs Sound Insulation / dB Air Permeability class Water Impermeability class
75 3 6 43 4 9A
Profile Heat Insulation / (W / M2 0K) Window Heat insulation / (W / M2 0K) Wind Load Resistance class Profile Class / TS -5358 / EN 12608 Glass Thicknesses / mm
1,02 0,94 C3 B 20,24,32,42,44
  • This series is suitable for all glass thicknesses from 4 mm to 44 mm.
  • It provides sound insulation up to 43 decibels with the acoustic glass option.
  • High water impermeability is provided by the design that facilitates water discharge.
  • Sash sagging is prevented by the applicability of hinge reinforcement steel.
  • Aesthetical integrity is provided by the oval glazing bead structure.
  • Special design triple sealing system definitely does not permeate air and water. Triple sealing system is available at Selenit Strong Series and Selenit Selective Strong Series which have Class “A” Wall Thicknesses.
  • It offers different insulation solutions with single, double and triple glazing beads.
  • It provides excellent heat insulation with 6 chambered frame and sash profiles.

QUALITY IN HARMONY WITH AESTHETICS AND PERFORMANCE – The period of SELENIT 75 Begins

System

  • All system profiles of the Selenit Series have a width of 75 millimeters.
  • Together with the detailed profiles that are integrated in main profiles, they are able bring a solution to each architectural and technical detail.
  • Window molding profiles are suitable for usage with triple-glass windows up to 44 millimeters.
  • The system is suitable for usage with 13-axis espagnolettes.
  • The resistance values of the system enable its usage on high-rise structures.
  • The lamination type that comes in 21 different colors and textures provides you with choices for both indoor and outdoor use.

EXPERIENCE, TECHNOLOGY AND DESIGN UNITE IN SELENIT 75

Wind Load Resistance

  • During design stage of Selenit 75, it was taken care for the moments of inertia belonging to the support sheets to be used within the system and the “wind load resistance” depending on these was at the highest level.
  • The series offers new solutions that can be utilized safely to provide coverage for high-rise structures and wide spaces.
  • The grillage profiles in the system can easily meet the ideal resistance values required for coverage of wide spaces in respect to architectural design.
  • The high endurance values of the Selenit system passed the 3.000 Pa (245 km/h) safety test successfully and was categorized in class C3 in regard to wind load resistance.

FOR THOSE WHO SEEK A DIFFERENT SOLUTION FOR NEW GENERATION STRUCTURES

Water and Air Impermeability

  • Special design triple sealing system definitely does not permeate air and water. Triple sealing system is available at Selenit Strong Series and Selenit Selective Strong Series which have Class “A” Wall Thicknesses.
  • Prevention of air passage from outdoors to indoors, which is necessary for energy saving, was improved with a middle gasket in addition to inner and outer gaskets.
  • The profiles were designed as to discharge rainwater to outdoors by formation of inclines and drainage channels on them.
  • The system did not leak any water inside and proved its high quality while under tests carried out with 600 Pa (110 km/h) wind load and 4 liters of rainwater per minute.

HEAT AND SOUND INSULATION IS NO LONGER A PROBLEM

Heat Insulation

  • In accordance with the standard TS EN ISO 10077-2, the Selenit System achieved the values Uf:1,02 W/m2 °K -Uw: 0,94 W/m2 °K according to the results of the test with Ug: 0,6 W/m2 °K glass of 1,23 m x1,43 m dimensions.
  • The main profiles of the Selenit Series have 6 wide cells. This enables them to minimize thermal conductivity coefficient.
  • Insulation performance has been upgraded to the best possible level for PVC window system with 3rd mid-sealing at Selenit Strong Series and Selenit Selective Strong Series.The profile designs of the Selenit Series were made as for the thermal conductivity coefficient values to be at minimum levels.

Sound Insulation

  • The sound insulation properties of the Selenit Series provide the noiseless environment that is necessary for life quality in the best way.
  • It is possible to achieve sound insulation up to 43 dB with Selenit window systems.
  • The Selenit Series ensures normal noise levels even in environments such as airports, railroads, etc. where sound levels are very high.
  • The glasses with acoustic properties which will be used with the system makes it possible to reach sound insulation levels as high as 43 dB.

The Selenit Series, designed at the highest level of aesthetics, performance and durability standards, offers a new window for modern structures. The series was developed for those who were looking for a solution that captures the zeitgeist under the changing life culture and living space concepts. The Selenit Series offers a complete system with its 75-millimeter profile width, 6-cell design and 3rd gasket option, which enable it to achieve the highest levels of performance.

The calculations were made by using a glass unit with a thermal conductivity coefficient of 0,6 W/m2K for a window with dimensions of 1,23×1,43m in accordance with the standard TS EN ISO 10077-2.

NEW ERA ON PERFECT INSULATION AND WIND LOAD RESISTANCE

Elegance 80 systems is providing more than the desired performance over a window; it carries the quality to the highest point by combining insulation, power, and aesthetic criteria and becomes a new solution partner for the projects. While it provides the perfect heat insulation with 80 mm wide profiles, a design with 6 chambers and a triple sealing system, is specially designed for the discharge of water from outer environment. Full insulation of the middle seal was provided by sloping sash design.

Its special design which provides superior durability against high wind load on high-rise buildings. Thanks to its wide mullion profile it provides excellent performance without need for any additional profiles suchlike grillage.

Aesthetics

Window production meeting various aesthetic and decorative expectations is possible with 21 different lamination color options. Different color foils can be used, inside and outside, depending on the building facades and indoor decoration. While wooden laminate options provide traditional wood aesthetics; it is also possible to build the windows with different shades of grey, mainly anodized grey and anthracite and provide a consistent aluminum look. Elegance 80 system, thanks to its sharp and wide edges, is a product that fits to the modern buildings and raises their values and provides savings through the heat insulation.

System

  • All profiles are 80 mm wide.
  • t’s designed as 6 chambered.
  • Triple sealed.
  • To provide full insulation of the middle seal, sashes are sloped.
  • 100% water impermeability is provided with discharging water from inner and outer sides of the middle seal through water draining system on frame.
  • t conforms to 13 axis espagnolette system.
  • It is designed in such a manner to easily produce a solution for all architectural details with its detailed and auxiliary profiles.

Wind Load Resistance

  • Elegance system is designed pursuant to 3.000 Pa (245 km/h) safety test on wind load and 600 Pa (110 km/h) water impermeability strength test and it has successfully passed these tests.
  • During the design stage of Elegance 80 system, shape of reinforcement steels, their locations in the profile, and the maximum wind load that the existing structures may be exposed to, were all considered.

Water and Air Impermeability

  • The profiles were designed as to discharge rainwater to outdoors by formation of inclines and drainage channels on them. High endurance against rain was provided even on the high wind load.
  • The system did not leak any water inside and proved its high quality while under tests carried out with 600 Pa (110 km/h) wind load and 4 liters of rainwater per minute.
  • Water leak totally hindered with the triple sealing system.
  • Usage of wide mullion profile is providing a high performance and high wind loads even in the high-rise buildings, without need for any additional profiles suchlike grillage.

Heat Insulation

  • Elegance 80 system was designed to reach the highest values of heat insulation by taking into consideration the middle seal, reinforcement steel, number and location of chambers, and all points that form a heat bridge.
  • By blocking the flow of heat from indoors to outdoors in winter, and vice versa in summer, through a special frame and sash seals and triple middle sealing features it saves energy both in summer and winter.
  • In accordance with the standard TS EN ISO 10077-2, with a glass system of dimensions 1.23 m x 1.43 m, the following values have been achieved: Ug: 0.6 W/m2K, Uw: 0.91 W/m2K, and Uf: 1.02 W/m2K.

Sound Insulation

  • Because of the usage of acoustic glasses in Elegance 80 system, indoors environment quality is enhanced by providing high sound insulation values.
  • Elegance 80 series provides isolated and comfortable environments even in flats placed near highways and airports by maintaining sound insulation up to 40 dB levels.

The calculations were made by using a glass unit with a thermal conductivity coefficient of 0.6 W/m2 °K for a window with dimensions 1.23 m x 1.43m in accordance with the standard TS EN ISO 10077-2

Wall
Thickness
Profile
Width
Number of
Chambers
Profile Heat
Conductivity Coefficient
Window Heat
Conductivity Coefficient
A Grade 85 mm 7 Uf : 1,07 W/m2K Uw : 0,93 W/m2K
Sound
Insulation
Air Permeability
Class
Water Impermeability
Class
Wind Load
Resistance Class
44 dB Class 4 Class 9A Class C3

A NEW ERA FOR PRESTIGIOUS PROJECTS
A NEW ERA IN WINDOW TECHNOLOGY

Our understanding of living spaces and our life are changing rapidly. We strive to use time more efficiently and take care of making choices which will keep us from experiencing problems at our living spaces for years. Construction technology continues to shape itself on higher comfort and functionality. REDONIT 85 is a new series which takes PVC window and profile standards to a new level and meets all the requirements in durability, aesthetics, thermal and acoustic insulation criteria by exceeding all standards for prestigious projects. It was designed for more comfort via its superior heat and sound insulation features and is now presented to those who search for a new dimension in aesthetics. Through its Class A wall thickness, 7 chambered designs and three sealed system, the series is capable of providing maximum performance in thermal and acoustic insulation parameters under the harshest climate conditions. With 21 different color and pattern options, the Redonit Series is a system which goes beyond the standards for elite projects. The series also allows usage of different colors for the exterior and interior of buildings, in order to meet the decorative expectations. The Redonit system provides excellent acoustic insulation against the outdoor noise on which we become gradually more sensitive and ensures extra impermeability via its three sealed system. Redonit, a perfect window system for those who wish to enhance their quality of life, is now at your service.

Aesthetics

REDONIT 85 is a window system which suits the decorative needs of all modern projects through its range of 21 lamination colors. The architectural style of the building facades and interior environment allows the implementation of different laminate colors at indoor and outdoor environments. While the wood patterned colors capture the beauty of nature, different grey tones such as Aluminium Brush Effects and Anthracite, can provide you a consistent view of the aluminum facade.

System Properties

  • The Redonit system has a profile width of 85 mm.
  • All profiles in the system have Class A wall thickness.
  • It is designed to have 7 chambers.
  • All profiles of the system have three seals.
  • Since the seals are implemented by being integrated onto the profiles, the third seal becomes optional and may not be used unless desired.
  • It is possible to use glass units of up to 44 mm.
  • The Redonit system can be used under the harshest conditions and in the widest openings by means of its profile width, number of chambers and impermeability system.
  • It is compatible with 13 mm axis espagnolettes.
  • It was designed to conveniently provide solutions for all architectural technicalities through its detailed and auxiliary profiles.

Wind Load Resistance

  • The Redonit system was designed according to the safety of 3.000 Pa (245 km/h) wind load resistance and the strength of 600 Pa (110 km/h) water impermeability and has successfully passed these tests.
  • During the design process of the Redonit system, the maximum wind load values to which the buildings can be exposed were taken into the consideration; the structure of the reinforcement steel and their locations inside the profiles were designed in the most effective way.
  • System, whose detailed and grillage profiles provide solutions to meet the architectural needs, easily ensures the closure of the wide openings and necessary resistance values.
  • By its Class A Wall thickness and reinforcement steels, the system can meet the inertia values required against high wind loads.

Water and Air Impermeability

  • Thanks to its water drainage channels and sets designed to discharge the rainwater faster and in an easier way, it provides high resistance to water even at high wind loads.
  • The system did not leak any water inside and proved its high quality under tests carried out with 600 Pa (110 km/h) wind load and 4 liters of rainwater per minute.
  • Owing 3rd seal prevents indoor water leakage completely.

Heat Insulation

  • The Redonit system was designed to achieve the lowest thermal conductivity coefficient possible in window systems by means of superior features such as its 85 mm wide profiles, 7 chambers, and capacity for glass units up to 44 mm, suitable chamber widths and convenient profile heights.
  • The custom-designed frame, sash and third middle seal used in the system provides thermal insulation at maximum level and ensures the Redonit Series to be an investment which pays for itself by means of energy saving during the summer and winter.
  • In accordance with the TS EN ISO 10077-2 standard, the window system with the dimensions of 1,23 m x 1,43 m has achieved the values of Ug : 0,6 W/m2K, Uw : 0,93 W/m2K and Uf : 1,07 W/m2K.

Sound Insulation

  • Redonit 85 Series provides acoustic insulation with values up to 44 dB. Thus, the system makes it possible to attain an indoor sound level that accommodates a quality life, even in the noisiest environments.
  • The custom-design seal system of the Redonit 85 Series enables the series to achieve maximum values in acoustic insulation.
  • The sound insulation level to be acquired via acoustic glasses that can be used with the system isolates the noise of outdoors from indoors in the most efficient way.

Profile Width
(mm)
Air Permeability
Class
Profile Class
TS -5358 / EN 12608
125 4 B
Wind Load Resistance Class Sound Insulation
(db)
Profile Heat Insulation Coefficient
(W / m2°K)
Window Insulation Coefficient
(W / m2°K)
C3 40 1,7 1,6

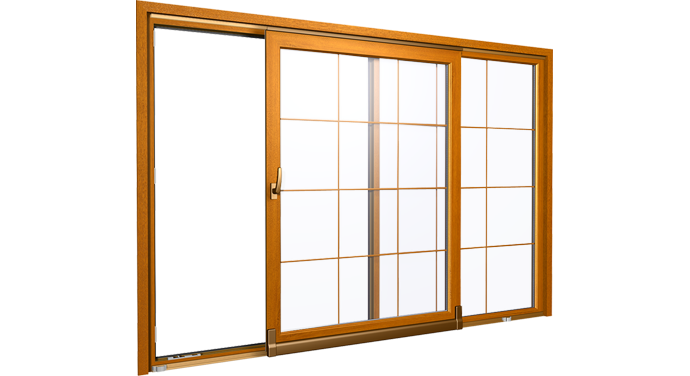

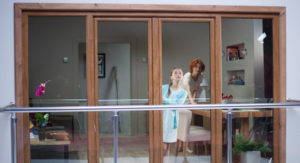

Zenia Hebeschiebe syetm is offered to the use of our customers with the addition of aluminum frame and aluminum double rail adapter used at the lower panel to the profiles of the Zenia Slide system.

Zenia Hebeschiebe syetm is offered to the use of our customers with the addition of aluminum frame and aluminum double rail adapter used at the lower panel to the profiles of the Zenia Slide system.

Hebeschiebe systems, which can be used comfortably in the details of the building such as garden, pool and balcony outlets with large and high openings, bring you the ease of use and comfort of the slider system.  The insulation advantage of the Zenia Hebeschiebe system adds value and comfort to your living spaces.

The gasket interlock system used in the Zenia Hebeschiebe system provides ease of use and insulation values ​​at the highest level thanks to the EPDM gaskets used at all points, the upper insulation profile and the special profiles preventing the sash shakiness.

  • Perfect insulation with EPDM gasket at all points
  • High rain and sound insulation
  • 200 kg load bearing capacity for each sash
  • Ease of use and installation
  • Easy sliding with 3 cm sill height
  • Aesthetic look with 125 mm frame – 50 mm sash width
  • Thanks to a special locking system, sash can be locked at a desired position
  • 21 different color options
  • The advantage of being available as ready-made joinery
  • Sashes can be in any desired number
  • Any sash/sashes can be movable
  • Cost advantage compared to all insulated sliding systems and hebeschiebe espagnolette
  • The Zenia system can be transformed into a Hebeschiebe system with the use of an aluminum lower frame. Thus, the load bearing capacity of each sash is 300 kg.

Guillotine System, which we design and manufacture, is a vertical sliding system that can be implemented in confined spaces such as kitchens or lofts with no room for sash swing, and in detached houses and villas to achieve added value in terms of aesthetics. In addition, it is the PVC window system that is preferred throughout the restoration period of historical buildings where the authenticity of the ambiance is desired to be preserved.

Guillotine System:

  • The requested sash width can be facilitated and the ease of mobility of sash weights up to 50 kg can be ensured through special accessories utilized.
  • Slide of both sashes can be achieved as requested.
  • Both sashes can be tilted to awning position, thus allowing a much more effective ventilation and ease of sanitation.
  • Secure against external intervention by means of the special key lock system utilized.
  • The bottom frame profile designed as sill, providing an improved decorative look.
  • 5 mm – 20 mm and 24 mm glazing thickness can be applied in the system.
  • Laminated coating option allows manufacturing in desired color and design.
  • Specially designed parts ensure ease of mechanical connection between the side frame and the bottom sill profile.
  • Interlocking system facilitates perfect alignment and prevents air and water permeability when the sashes are closed.
Frame and Sash Profile Width
(mm)
Number of Seals (pcs) Number of chambers Sound Insulation (decibel) Air Permeability Class Water Impermeability Class
75 3 6 43 4 9A
Profile Heat Insulation (W / M2 0K) Window Heat Insulation (W / M2 0K) Wind Load Resistance Class Profile Class TS -5358 / EN 12608 Glass Thickness (mm)
1,02 0,94 C3 A 20,24,32,42,44

Selenit Cover Series provides an aluminum look in the external environment with the help of the aluminum coating system applied to PVC windows. Selenit Cover does not compromise over the advanced insulation properties of PVC windows and it can be applied on PVC windows by way of the aluminum covers in colors which are compatible with the façades.

PVC window systems are the window systems which have the lowest thermal conductivity (having the highest insulation values). For the applications which are requested to look like aluminum, specially designed Selenit Cover aluminum profiles are applied on PVC window profiles to obtain the aluminum look in different colors. Thus, both the desired aesthetic look is achieved and the insulation of the PVC window reaches higher values due to the aluminum cover. Aluminum profiles are applied to the external part of the window.

While Fıratpen Pivot Windows systems are especially used for kitchen, lounge, corridor and attics in the houses, they are also preferred as original solutions for many structures built for different purposes. Thanks to wing action by 360º enabled at both horizontal and vertical position with their opposite hinges at the centre point and their ventilation position, Pivot Window Systems provides advantages of practical and original use in your buildings. They give sense of comfort, spaciousness and immensity indoor spaces with their square, rectangular and circular forms; they also provide excellent acoustic and heat insulation.

Fıratpen Folding Door Systems are especially preferred for terraces, balconies and wide openings to the garden. While Folding Doors provide comfort, spaciousness and sense of immensity, they also offer excellent sound and heat insulation. They are very easy and convenient to use.

Fıratpen Pull-Open Systems are especially preferred for terraces, balconies and wide openings to the garden. While Pull-Open Systems provide comfort, spaciousness and sense of immensity, they also offer excellent sound and heat insulation. Another important feature of Pull-Open Systems is that its wings move easily due to superior engineering solutions.

Shutterbox Shutter Systems

Shutterbox Shutter Systems which perfectly fit all kinds of projects, are monoblock shutter systems that do not exceed to exterior surface of the buildings and applied on windows. With its lamination options, aesthetic appearance and functionality, it offers architectural and decorative solutions to meet your expectations.

Shutterbox shutter systems consist of 3 box systems with different sizes.

  • 155 mm Shutter Box
  • 195 mm Shutter Box
  • 220 mm Shutter Box

Shutterbox Shutter systems are designed to fit all window and door sizes from the highest openings to the lowest openings with 3 different box sizes.

Shutterbox Shutter Systems are Suitable for the use of PVC and aluminum slats from 37 mm to 55 mm.

The system can be applied to sliding systems thanks to its detailed profiles and designed to fit the application of blinds and pleated insect screens together with the shutter.

With Shutterbox shutter systems, thanks to the motors which can be used in the box, you can operate your shutters with a button or a remote controller.

Shutterbox shutter systems add value to the structure in which it is applied thanks to the heat, sound insulation and extra burglary protection it provides.

General Features of Shutter Systems;

  • Shutter boxes consist of only 2 different profiles.
  • It provides easy and defect-free installation thanks to the pins located on the side cover and the middle bearings.
  • All 3 box profiles have common middle rail and edge rails.
  • Thanks to its two-piece outer cover, it is suitable for internal-external different color applications.
  • Use of special aluminum laths to increase the resistance of shutter boxes against sunlight is possible.
  • Thanks to the detailed profiles, the sliding and insect screen systems can be used with the shutter system.

Shutter Systems Box Winding Dimensions:

220 mm Shutter Box

Slat
Type
Drum
Type (mm)
Max. Winding
Height (mm)
Recommended Max.
Width (mm)
37 mm PVC 40 4.000 1.200
60 4.000
52 mm PVC 60 2.800 1.500
39 mm Aluminum 40 4.000 2.000
60 4.000
41 mm Aluminum 40 3.250 2.000
60 3.250
45 mm Aluminum 40 3.250 2.000
60 3.250
55 mm Alm. 60 2.000 2.200

195 mm Roller Shutter Box

Slat
Type
Drum
Type (mm)
Max. Winding
Height (mm)
Recommended Max.
Width (mm)
37 mm PVC 40 3.000 1.200
60 2.900
52 mm PVC 60 2.000 1.500
39 mm Alm. 40 3.000 2.000
60 2.700
41 mm Aluminum 40 2.200 2.000
60 2.000
45 mm Aluminum 40 2.000 2.000
60 2.000
55 mm Aluminum 60 1.750 2.200

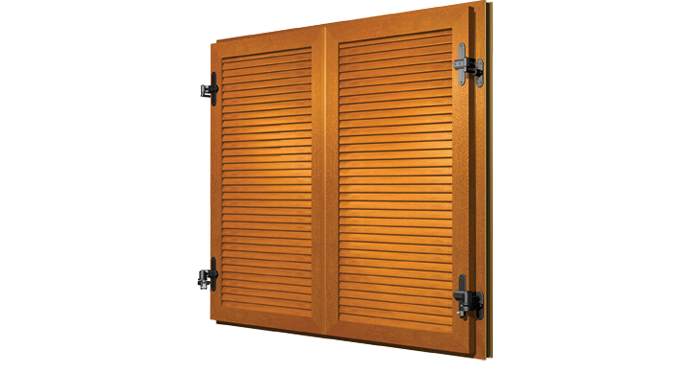

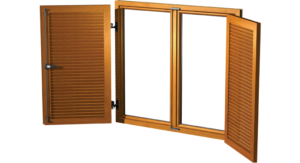

Firatpen shutter systems compatible with all kinds of projects, provides controlled protection inside out in your building while offering ideal solutions for your traditional architectural and decorational expectations with the rich accessory choices. It brings comfort and convenience to your living spaces with their design in harmony with the exterior surface of your buildings, choice of lamination coating having natural wood patterns, their aesthetic look and functionality.

  • They are compatiable with all Fıratpen window and door system series.
  • They can be easily used with all different door and window systems with their width up to 140 cm and height up to 240cm.
  • It blocks enter of sunlight inside due to its immoveable mount system in size of 80 mm x 35 mm at angle of 67º.
  • It may also be used as ventilation grille due to its fixing option.
  • While it is used for single wing applications, it may also be used for double wing applications by means of wing adapter profile.
  • As PVC window profile formulation is used for its production, its resistance against challenging natural conditions and sunlight has excellent performance.
  • Fıratpen Shutter Systems are integrated and function excellently as all their parts are produced by us.
  • They have manual and pneumatic hinge options.
  • There are natural wood patterns lamination coating choices and as well as choices of different colors.
  • Their resistance against hard conditions was proved during the tests performed at FIRAT Laboratories.
